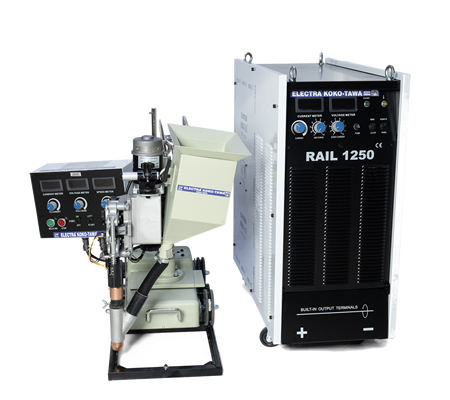

SAW RAIL 1200
High-Performance Submerged Arc Welding (SAW) Machine with Welding Trolley
The Electra Koko Tawa RAIL1200 is a top-tier Submerged Arc Welding (SAW) machine designed to handle heavy-duty industrial applications. With exceptional welding capacity, integrated features, and durable construction, it is the perfect choice for highperformance welding tasks. The RAIL-1200 delivers superior efficiency and reliability
Key Features
- High Welding Capacity:
- Delivers a powerful output current range suitable for heavy-duty welding tasks.
- Advanced Control System:
- Precise voltage and current adjustments through a user-friendly interface.
- Durable Construction:
- Engineered with rugged materials for long-lasting performance in demanding environments.
- Integrated Welding Trolley:
- Includes a sturdy trolley for easy movement and positioning.
- Energy Efficient:
- Designed for optimized power consumption while maintaining exceptional performance.
Technical Specifications
| Parameter | Details |
|---|---|
| Input Voltage | 3-phase AC 415V ± 15% |
| Rated Input Capacity | 64.5 kVA |
| No-Load Voltage | 80V |
| Output Current Range | 112 – 1250A |
| Rated Output Voltage | 44V |
| Duty Cycle | 60% |
| Efficiency | 85% |
| Power Factor | 0.93 |
| Insulation Class | F |
| Protection Class | IP21 |
| Dimensions (L × W × H) | 580 × 300 × 580 mm |
| Weight | 98 kg |
| Wire Diameter | φ3.2 – φ5.0 mm |
| Tractor Travel Speed | 6 – 72 m/h |
| Wire Feed Speed | 0.5 – 2.5 m/min |
| Cooling Method | Forced Air |
Application
- Heavy Fabrication: Ideal for welding large structures such as girders, I-beams, and pressure vessels.
- Shipbuilding: Suitable for assembling ship components requiring deep weld penetration.
- Railway Manufacturing: Perfect for welding railway undercarriages and related structures.
- Industrial Equipment: Applicable in the fabrication of boilers, heat exchangers, and heavy machinery.
Included Accessories
- Welding Tractor: Integrated control system for precise movement and operation.
- Flux Hopper: 10 kg capacity for uninterrupted welding operations.
- Welding Head: Equipped with a mechanical clutch for manual adjustments.
- Horizontal and Vertical Slides: For precise welding head positioning.
- 4-Roll Drive Wire Feed Motor: Ensures smooth and consistent wire feeding.
- Wire Spool Holder: Integrated into the welding trolley with a 25 kg capacity.
- Interconnection Cable: 15 m of 95 square mm high-quality copper for reliable performance.
- SAW Wire Capability: Capable of welding with wires up to 5 mm in diameter.
- Control Cables and Connectors: Complete setup for immediate operation.
Why Choose Electra Koko Tawa RAIL-1200?
- Robust Performance: Delivers reliable and precise welds for demanding applications.
- Advanced Engineering: Incorporates the latest technology for superior efficiency.
- Durability and Mobility: Built to last and equipped with a trolley for easy transport.
- Versatile Usage: Compatible with a wide range of applications and materials.
