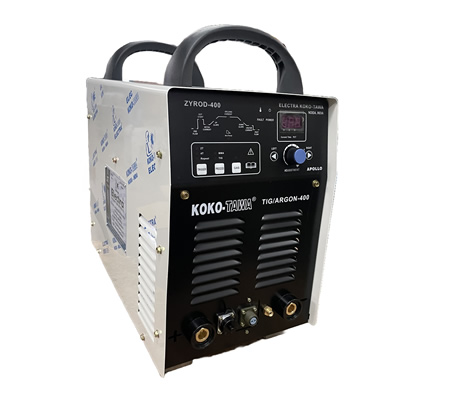

ZYROD 400 TIG WELDING MACHINE
The ZYROD 400 TIG Welding Machine is a high-performance, IGBT inverter-based welding solution designed for professional and industrial applications. With advanced features like HF start and flexible TIG and MMA capabilities, the ZYROD 400 is perfect for welding across various industries, including fabrication, pipe welding, and shipbuilding.
Key Features
- Superior Welding Performance:
- Supports both TIG and MMA welding with an output range of 10A to 400A.
- Ensures high-quality welds with smooth arc characteristics.
- Advanced TIG Controls:
- Equipped with HF Start, Gas Pre-flow & Post-flow, Start Current & End Current, and Up & Down Slope for superior welding precision and control.
- Durability and Portability:
- Compact and lightweight design, weighing only 35 kg for ease of transport.
- Built with IP21S protection class to handle tough industrial environments.
- Energy Efficiency:
- High power factor (0.9) and efficiency (≥85%) for reduced energy consumption.
- Enhanced Safety Features:
- Protection against Over-Temperature, Under-Voltage, Over-Voltage, and Single-Phasing for reliable operation.
- Continuous Operation:
- Excellent duty cycle with 310A at 100% and 400A at 60% for uninterrupted welding.
Technical Specifications
| Specification | Details |
|---|---|
| Input Voltage | Three-phase 415V ±15% |
| Frequency | 50/60 Hz |
| Rated Input Capacity | 11.3 KVA |
| No-load Voltage | 62V |
| Current Adjustment Range | 12-400A |
| Duty Cycle (at 40°C) | 60% |
| Efficiency | 85% |
| Power Factor | 0.93 |
| Insulation Class | H |
| Protection Class | IP21 |
| Pulse Frequency Range | 0.5-450 Hz |
| Downslope Time | 0-10 seconds |
| Cleaning Width Adjustment | ±5% (20-80%) |
| Duty Ratio | 10-90% |
| Gas Post-flow Time | 0-10 seconds |
| Net Weight | 35.5 kg |
| Dimensions (L×W×H) | 609×332×622 mm |
Application
The ACDC400P is suitable for high-end non-ferrous metal welding, aluminum alloy fabrication, fitness equipment manufacturing, and pipeline installations. It's particularly effective for all-position welding tasks that demand superior weld formation.
Standard Accessories
- TIG Welding Torch.
- Ground Clamp with Cable.
- Gas Hose.
- Gas Regulator + Flow Meter.
Optional Accessories
- Welding Helmet.
- Protective Gloves.
- Welding Cart.
Why Choose Electra Koko Tawa's ACDC400P?
Our ACDC400P Welding Machine combines cutting-edge technology with user-friendly features, ensuring optimal performance for professionals in the welding industry. With a commitment to quality and customer satisfaction, Electra Koko Tawa delivers reliable and efficient welding solutions tailored to your needs.
